Product omschrijving

Board Specifications Pepper Jobs X28-i

CPU

Rockchip RK3328 quad core Cortex-A53 quad core GPU Mali-450MP2

Frequency

1.5GHZ

RAM

LPDDR3 2GB

Storage

eMMC 16GB/32GB (optional)

Network

With RJ45 interface, support 10/100 Mbps Ethernet

Support 4G PCIE interface

Wireless module, support Wi-Fi 802.11b/g/n protocol, BT4.0

Real Time Clock

Built-in real-time clock, powered by battery

Interface device

Support USB camera

6 USB HOST, 1 USB 3.0

SD card, maximum support 256GB

Class D amplifier: 5W*2 8 ohms, support microphone

HDMI 2.0 output

Audio

MP3, AAC, WMA, FLAC, OGG, Dolby Digital, Dolby Digital Plus

Video

Supports 1080P@60FPS decoding of video formats such as MPEG1, MPEG2, MPEG4, VP9, VP8, MVC, etc., and supports 4K@60FPS decoding of H.264 and H.265 video formats.


Support JPG, BMP, PNG and other image formats to browse and support rotation / image zoom function

Power Adapter

Input: AC100-240V 50-60Hz, Output: DC12V/3A

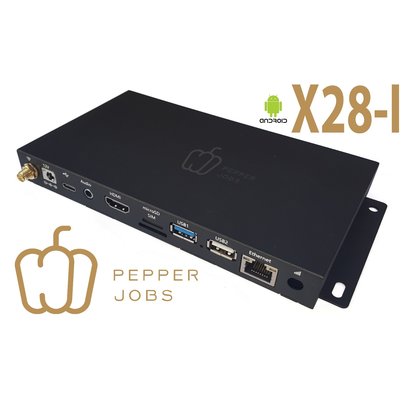

Pepper Jobs X28-i Digital Signage board

Download full spec sheet Pepper Jobs X28-i
